DEWALT DCS782N 18VOLT 12″ BLADE MITRE SAW BODY ONLY

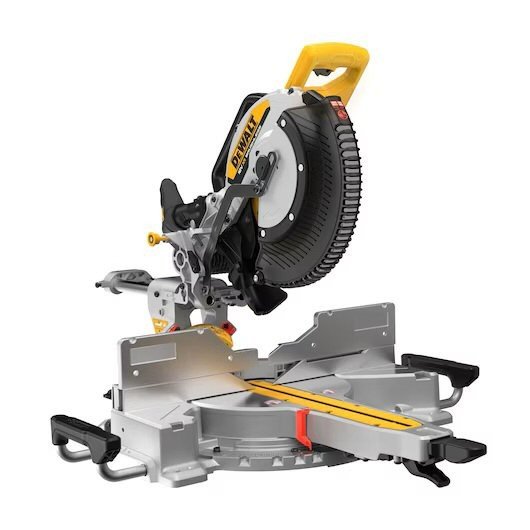

DeWALT DCS782N Mitre Saw

18v BODY ONLY DCS782N-XJ DeWALT Slide Mitre Saw is built round a tough DeWALT Brushless Motor giving this 18v Slide Mitre Saw 112mm maximum depth of cut and 310mm maximum cross-cut capacity to tackle the toughest jobs out on site. Typical first fix applications for this 305mm Slide Mitre Saw include Roof frames mitre or compound mitre cuts, Staircase Installation mitre or cross cut treads, newels, handrails and spindles, Decking and Landscaping deck boards mitre or bevel cuts, timber sleepers, Stud Walls stud worm cross cuts and Timber Frame mitre or cross cuts. Second fix applications include Carpenter skirting mitre or bevel cuts and architrave mitre cuts, Kitchen Fitting kickboards cross cuts, cornice mitre or compound mitre cuts, moulding mitre or cross cuts and Crown Moulding coving cuts plus general work including beading and hardwood mitre, cross cut and compound mitre cuts.

The machine has a multitude of outstanding features that are listed below.

New Trigger Mechanism:- Ensures safety from accidental trigger pulls while keeping a simple intuitive system with natural hand movement, replaces push mechanism with a switch on the trigger.
Re-Generative Braking Technology:- Extends run-time by redirecting lost energy back into the battery. Rail Link Transport and Fence:- removes movement and potential damage during transportation, ensures maximum height of cut for fence applications such as vertical skirting.
Linear 20mm Horizontal Rail with 3 Linear Bearings:- Lightweight design without compromising reliability and smooth movement.
Stainless Steel Detent Pin:- Easily recalibrate ensuring accuracy during each cut, quick accurate mitre adjustment and lock.
XPS Cross Cut Positioning System:- Increased accuracy as the shadow line shows exact line of cut of the blade and illuminates the the work piece, no risk of knocks requiring re-calibration unlike laser systems.
Aluminium Base:- Lower weight design and machines with 0.1 degree of accuracy.
CAN Lock Mitre Control and Detent Trigger:- The natural position of the trigger pull makes mitre adjustment quick, accurate ands simple. Extending Fence:- 120mm high extending fence with tethering ensuring they are not misplaced.
Base Extension:- 100mm per support increases base for material to ensure accurate cuts, meets the latest IEC requirements and improves portability and handling as the extension incorporates carry handles.
Headlock Pin:- easy to kind while out on the job or wearing gloves, the spring loaded design prevents accidental release.
Trenching Function:- Accurate adjustable trenching for the perfect finish.
Crows Foot Bevel Lock:- gives simple adjustability that is easy to locate and adjust.
Drop Down Gearing:- Allows for horizontal cutting on applications such as skirting and helping to achieve maximum height of cut.
Quick Clamp Slots:– Multiple areas for quick clamps to secure the workpiece quickly and efficiently.
Top Load Single Battery:- Improves accessibility and centre of gravity ensuring a predictable cutting experience no matter the size of the 18v battery.
Dust Catcher:- Long lasting tough rubber dust catcher removing the risk of shatter unlike plastic alternates improving dust collection.
Direct Airlock Dust Port:- Keeps the jobsite clean and healthy, quick secure connection to an exterior dust extraction system.
Wireless Tool Control:- Dust extraction when needed through automatic dust extraction.
Transport Carry Handlee:- Improved weight balance and distribution making the top carry handle perfect for carrying across the site or when storing in the back of the van.

Technical Specification of DeWALT DCS782N Mitre Saw

• Powerful DeWALT brushless motor technology
• No load speed 3800rpm
• 305mm x 60T extreme run-time blade
• Quick release bevel settings 48 degrees left and right
• Mitre capacity 50 degrees left, 60 degrees right
• Maximum cross-cut capacity 310mm
• Maximum cutting depth 112mm
• Maximum skirting depth 165mm
• Re-designed trigger mechanism
• Regenerative breaking technology extends run-time
• 30mm and 20mm rail with 3 linear bearings
• Stainless steel detent plate
• Aluminium base and fence machines to high standards of accuracy delivering 0.1 degree for key applications
• CAM lock mitre control and detent trigger adjust angles 0 to 50 degrees left and 0 to 60 degrees right
• Crows foot bevel lock
• Large dual sliding fence for maximum support in large material cuts, any angle or combination of angles
• Trenching function
• Headlock pin
• Rail link transport and fence
• XPS cross cut shadow line
• Drop down gearing
• Quick clamp slots
• Top load single battery
• Dust catcher
• Direct airlock dust port
• Wireless tool control automatic dust extraction
• Dust bag
• Material clamp
• Transport carry handle
• Machines side handles meet IEC requirements improving portability and handling plus a stable base for wider materials
• Base extension carry handle
• Weight 22kgs
